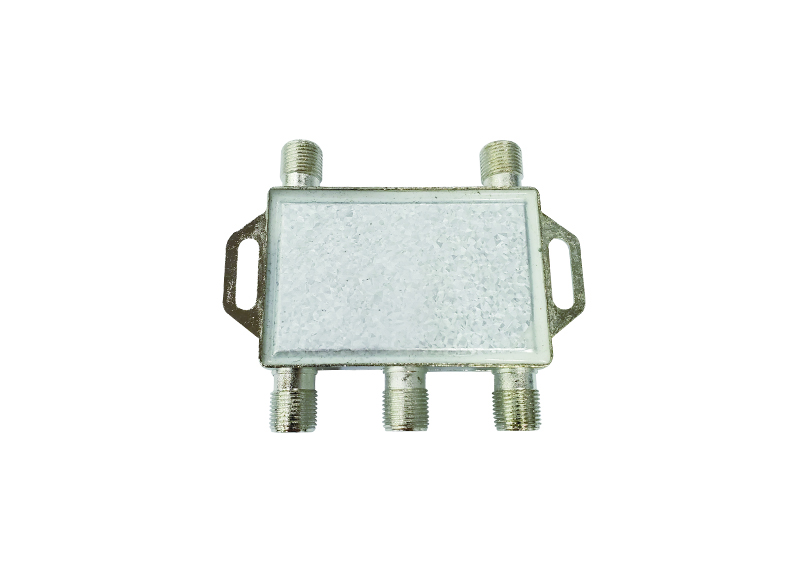

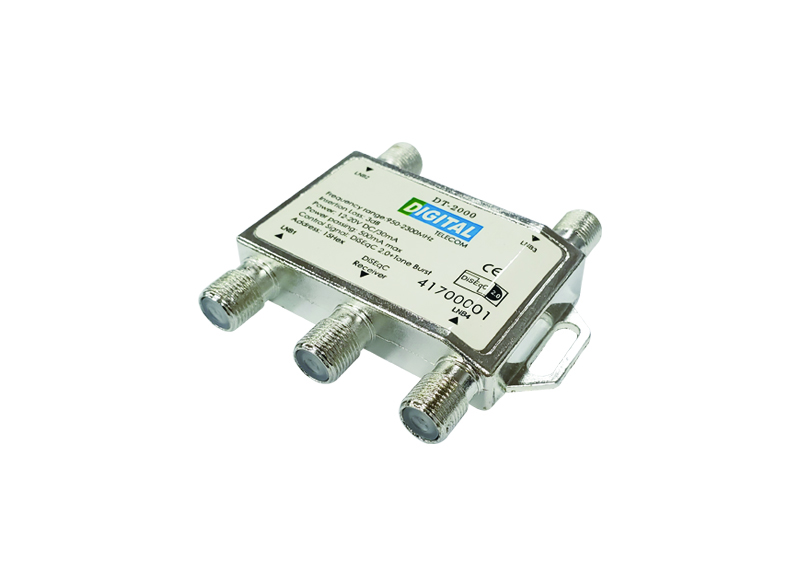

DiSEqC Switch 2.0 950-2300MHz
Features:
1.Znic die-cast housing,nickel-plated
2.Excellent quality component ,professional circuit design and low loss
3.13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
4.Capable of connecting four SATV signals simultanenously
5.Distributed into six or seven subscribers to use simultaneously and no mutual interference
6.Applicable to multi satellite and multi-receiver usage
7.Power supplied from satellite receiver or external power
Specification
| ITEM | UNIT | |
| Frequency Range | MHz | 950-2300 |
| Insertion Loss | dB | 3 |
| Isolation Between Outputs | dB | 25 |
| Switching Isolation Input | dB | 28 |
| Return Loss Input | dB | 12 |
| Return Loss Outputs | dB | 8 |
| Output Level | dBuV | 95 |
| Normal Working Voltage | V | 12-20 |
| DC Power Consumption | mA | 30 |
| DC Max Power Passing | mA | 500 |
| Supply Voltage | Vdc | 13/18（±1） |
| Impedance(all ports) | Ω | 75 |
