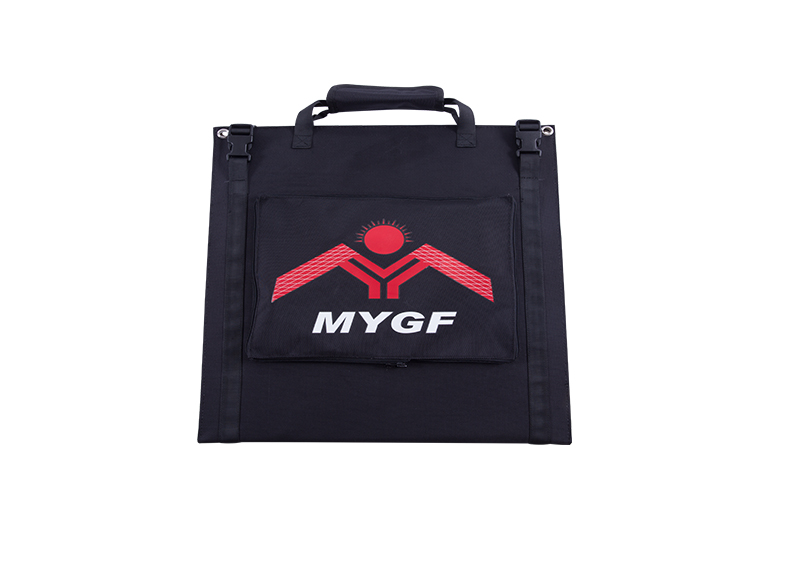

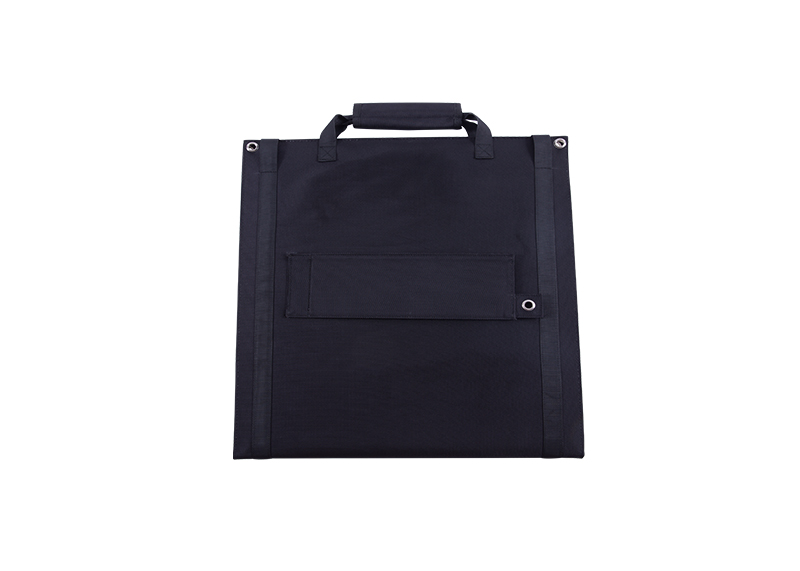

MYGF THREE FOLDS PORTABLE ULTRA LIGHT SOLAR BAG
Model No. | MYGF-F3-120W | MYGF-F3-150W |
Max power | 120W | 150W |
Component | ECTFE/EVA/Cell/PET/PCB/Sponge/Nylon Fabric/Handle/Plastic Fastener/ZIP | |
Open Circuit Voltage(VOC) | 22.5V | 22.5V |
Short Circuit Current(ISC) | 7.11A | 8.89A |
Max. Power Voltage(Vmp) | 18V | 18V |
Max. Power Current(Imp) | 6.66A | 8.34A |
Maximum System Voltage | 1000V | 1000V |
Power Tolerance | ±3% | ±3% |
Dimension Folded(mm) | 530x552x65 | 65x560x65 |
Dimension Spreading(mm) | 1570x552x50 | 1690x650x50 |
Controller | PMW/MPPT | PMW/MPPT |
Opertate Temperature Range | -40°C to +85°C | -40°C to +85°C |
Relative Humidity | 0~100% | 0~100% |
Accessories | ||

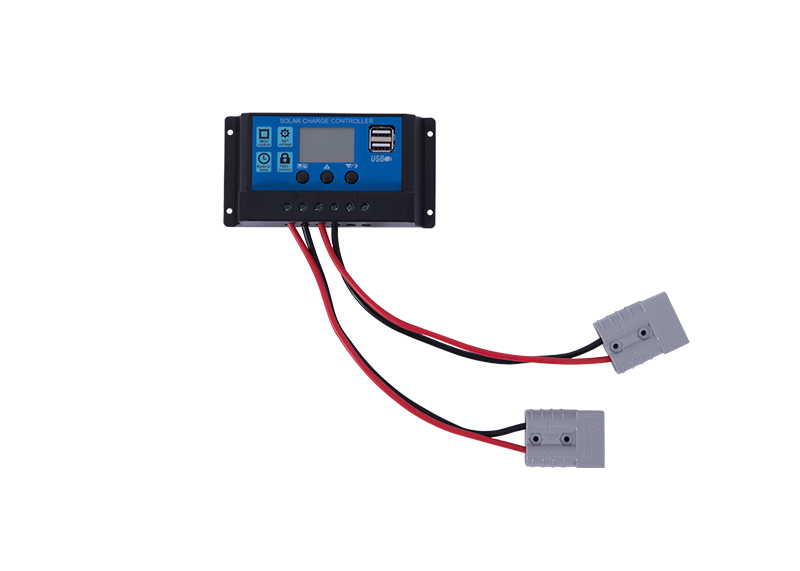

1. PMW Controller X1 | ||

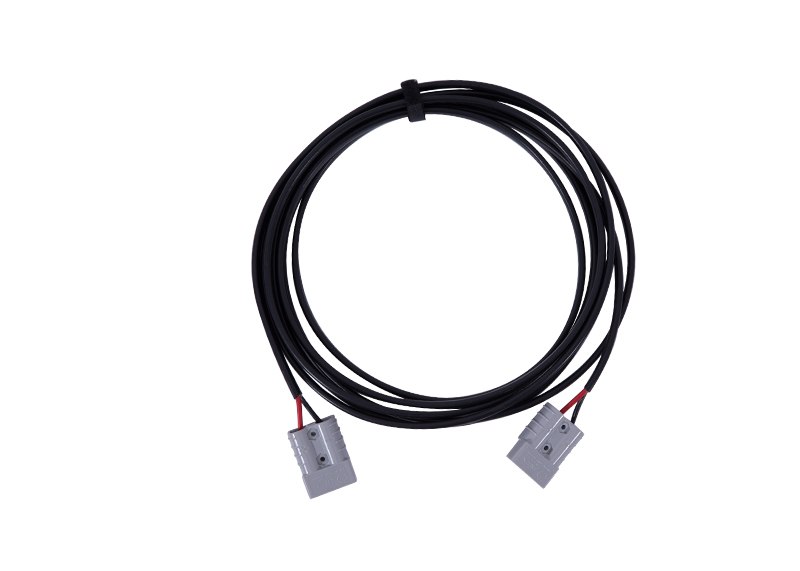

2. 5 Meter with MC4 or Anderson connector X1 | ||

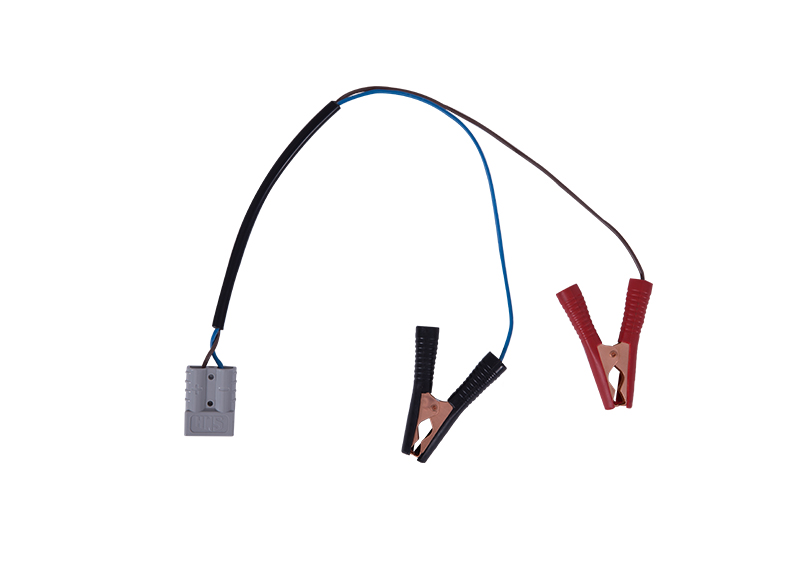

3. 30cm cable of Alligator Clip with Anderson Connector x1 | ||
4. User Manual x1 |
